🚨 Industry Pain Points: 4 Core Challenges in 1J22 Bar Processing
The unique metallurgical characteristics of 1J22 make bar-stock processing significantly more prone to deformation, internal stress accumulation, and thermal damage compared to standard alloys:
❌ 1. Stress-Magnetic Loss Coupling & Irreversible Performance Drop
The magnetic domain structure of 1J22 is exceptionally sensitive to mechanical stress. Standard turning and grinding induce surface compression and shear deformation, causing lattice distortion and domain disorder. Coercivity (Hc) spikes while magnetic permeability (μ) drops drastically. Conventional machining creates a lose-lose dilemma: "Saving dimensions destroys magnetic properties; preserving magnetic properties loses dimensional control."
❌ 2. Severe Work Hardening & High Risk of Thermal Cracking
1J22 exhibits rapid work hardening during cold working combined with extremely poor thermal conductivity. Low-speed friction during machining exacerbates surface hardening, while high-speed cutting causes rapid thermal accumulation. Without specialized tool geometries and cooling, surface burns, micro-cracks, and edge chipping frequently occur, rapidly wearing out tooling.
❌ 3. Unbalanced Residual Stress & Uncontrolled Bar Distortion
Hot-rolled or forged raw bar stock retains uneven metallurgical residual stresses. As material is removed during rough machining, these stresses redistribute, causing bowing, warping, and out-of-roundness across the bar length. Standard post-machining annealing warps precision features, whereas machining post-annealing reintroduces destructive mechanical stress.
❌ 4. Narrow Phase Transformation Window & Zero Room for Heat Treatment Error
1J22 possesses a highly sensitive embrittlement phase transformation temperature range. Conventional air-atmosphere heat treatment lacks precise control over heating rates, soak times, and cooling environments, resulting in material embrittlement, surface oxidation, and incomplete magnetic domain recovery.
⚙️ Breakthrough Process: Youyou Company's 5-Stage Closed-Loop Workflow
Tailored specifically to the structural behavior of 1J22 bar stock, Youyou Company has standardized a 5-stage closed-loop manufacturing pipeline to ensure dimensional accuracy, surface integrity, and magnetic excellence simultaneously:
1. 🔍 Incoming Raw Material Screening & Non-Destructive Inspection

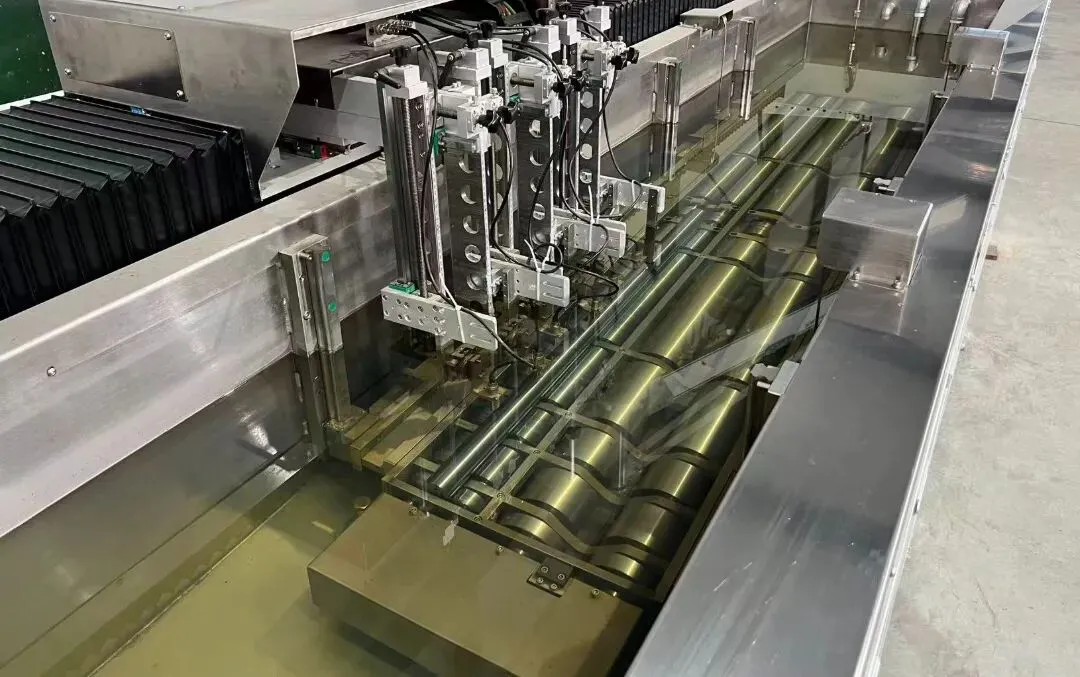

Every batch of 1J22 bar stock undergoes comprehensive quality control before entering the CNC line: magnetic sampling verification, metallographic phase evaluation, 100% ultrasonic flaw detection, and mechanical hardness testing. Tooling parameters are customized based on initial residual stress to eliminate defects at the source.
2. ⚡ Low-Stress Rough Machining + Intermediate Stress Relief
We utilize large depth-of-cut, optimized feed rates, and high-volume cryogenic cooling during rough machining to rapidly strip stock allowance without work-hardening the surface. Immediate low-temperature intermediate stress-relief annealing follows roughing to release internal stresses before final precision machining, preventing long-term geometric drift.

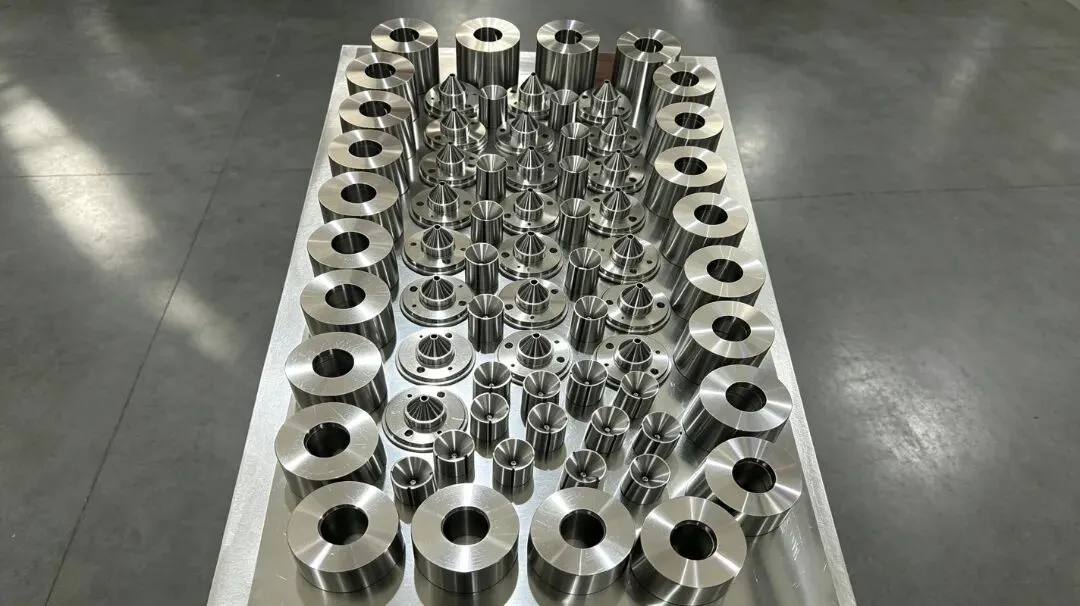

3. 🔪 Custom Tooling + Micro-Infeed Precision Grinding
We employ custom carbide-coated tools with optimized rake (5°–10°) and relief angles (8°–12°), paired with specialized CBN grinding wheels. Using low-speed, micro-infeed grinding under extreme-pressure coolant, surface damage layers are strictly held under 5 μm, completely eliminating chatter, thermal burns, and micro-cracks while preserving native magnetic domains.

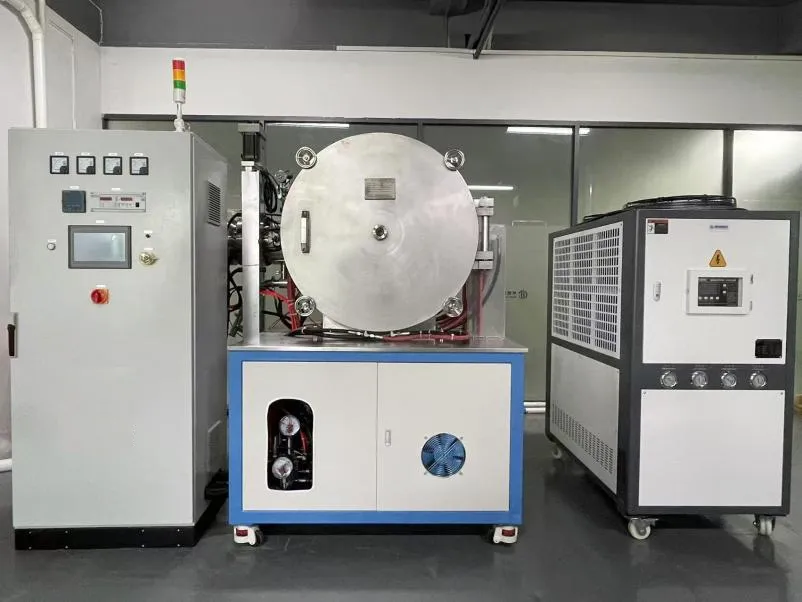

4. 🔥 Precision Vacuum Heat Treatment for Magnetic Recovery
Utilizing sealed high-vacuum protective heat treatment furnaces, we precisely navigate the 1J22 embrittlement phase zone. By controlling heating rates, soak duration, and cooling trajectories, we completely prevent oxidation and embrittlement. Internal stresses are eliminated and magnetic domains are fully realigned, activating peak saturation magnetization (Bs ≥ 2.4 T) and minimal core loss.
5. 📐 Dual-Dimensional Inspection: Geometry + Magnetic Performance
We implement a rigorous dual-check inspection process. CMM, roundness instruments, and surface profilometers verify outer diameter tolerances, roundness, straightness, and micro-finish. Concurrently, coercivity, magnetic permeability, and saturation flux density are tested via magnetic analyzers to ensure total batch-to-batch consistency.
📊 Hardware Matrix & Technical Capabilities
| Capability Parameter | Youyou Company Engineering Standard |
|---|---|
| Advanced Equipment Matrix | High-precision CNC lathes, Swiss-type turning centers, mill-turn multi-axis centers, precision cylindrical grinders, centerless grinders, high-vacuum heat treatment furnaces, and specialized magnetic testing instruments. |
| Proprietary Soft Magnetic Database | Extensive experience with 1J22 (Fe-Co-V / Hiperco 50), 1J50 (Ni-Fe), 1J85 (Permalloy), and Vacodur 49. Complete repository of proprietary cutting parameters, tool geometry profiles, and heat treatment curves. |
| Turnkey Manufacturing Delivery | Single-source accountability covering raw bar stock cutting, precision turning, grinding, deep hole drilling, complex milling, vacuum heat treatment, surface passivation, and magnetic testing under one roof—enabling "raw bar stock in, finished component out." |
🤝 Accelerating High-End Soft Magnetic Component Localization
Precision manufacturing of 1J22 bar stock represents a critical technical hurdle in the advanced electromagnetic supply chain. Projects frequently stall not because of raw material limitations, but because conventional machine shops cannot maintain micro-scale geometric tolerances while preserving native magnetic properties.
Combining deep metallurgical knowledge with advanced machining techniques, Youyou Company eliminates these industry trade-offs. We deliver stable, standardized, and scalable 1J22 precision component manufacturing for aerospace, defense, medical robotics, and high-performance drive applications.
About Youyou Company
As a specialized precision soft magnetic component manufacturer, Youyou Company overcomes the critical industry bottleneck of 1J22 (Hiperco 50 / Fe-Co-V) bar stock processing—where raw materials are accessible, but precision component manufacturing remains extremely difficult. By integrating low-stress micro-infeed grinding, full-length bar distortion control, and precise vacuum heat treatment for magnetic domain recovery, we eliminate stress-magnetic loss coupling and severe work hardening. We provide turnkey, single-source precision manufacturing from raw bar stock to finished components for aerospace actuators, defense systems, medical robotics, and high-performance electromagnetic drives.
Ready to eliminate stress-magnetic loss and resolve 1J22 machining bottlenecks?
Contact our engineering team today to request 1J22 precision component prototype sampling or get a complete Machining Feasibility & Vacuum Heat Treatment DFM Evaluation for your drawings!
